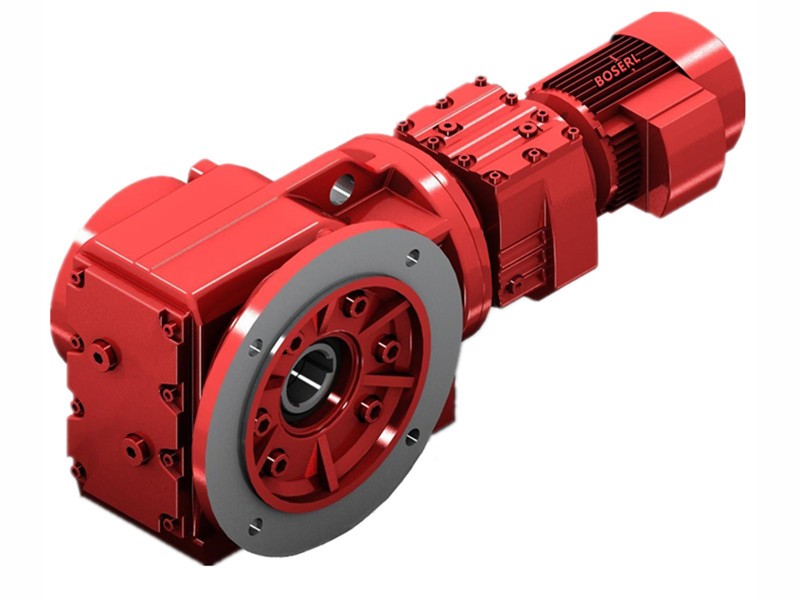

KAF127R77DM71S4詳細信息
KAF127R77DM71S4
訂購熱線：13360667204
關鍵詞：1.1KW用什么傘齒輪減速機_KAF127R77DM71S4_KAF127R77DRS80K4
KAF127R77DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF127R77DM71S4 | 9819 | 0.25KW | 0.13r/min | 15100N.m | 426kg | 75600N | 0.85 |
| KAF127R77DM71S4 | 8443 | 0.25KW | 0.15r/min | 13000N.m | 426kg | 79200N | 1.00 |
| KAF127R77DM71S4 | 7482 | 0.25KW | 0.17r/min | 11500N.m | 426kg | 79900N | 1.10 |
| KAF127R77DM71S4 | 6565 | 0.25KW | 0.20r/min | 10100N.m | 426kg | 80600N | 1.30 |
| KAF127R77DM71S4 | 5804 | 0.25KW | 0.22r/min | 8750N.m | 426kg | 81200N | 1.50 |
| KAF127R77DM71S4 | 5027 | 0.25KW | 0.26r/min | 7690N.m | 426kg | 81600N | 1.70 |
| KAF127R77DM71S4 | 4423 | 0.25KW | 0.29r/min | 6660N.m | 426kg | 81900N | 1.95 |
| KAF127R77DM71S4 | 3889 | 0.25KW | 0.33r/min | 5820N.m | 426kg | 82100N | 2.20 |
| KAF127R77DM71S4 | 3311 | 0.25KW | 0.39r/min | 4870N.m | 426kg | 82300N | 2.70 |
KAF127R77DRS80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF127R77DRS80K4 | 4423 | 0.55KW | 0.31r/min | 14600N.m | 431kg | 76600N | 0.90 |
| KAF127R77DRS80K4 | 3889 | 0.55KW | 0.35r/min | 12800N.m | 431kg | 79200N | 1.00 |
| KAF127R77DRS80K4 | 3311 | 0.55KW | 0.42r/min | 10800N.m | 431kg | 80300N | 1.20 |
| KAF127R77DRS80K4 | 3009 | 0.55KW | 0.46r/min | 9840N.m | 431kg | 80700N | 1.30 |
| KAF127R77DRS80K4 | 2607 | 0.55KW | 0.53r/min | 8450N.m | 431kg | 81300N | 1.55 |
| KAF127R77DRS80K4 | 1926 | 0.55KW | 0.72r/min | 6520N.m | 431kg | 81900N | 2.00 |
| KAF127R77DRS80K4 | 1757 | 0.55KW | 0.79r/min | 5940N.m | 431kg | 82100N | 2.20 |
| KAF127R77DRS80K4 | 1541 | 0.55KW | 0.90r/min | 5180N.m | 431kg | 82300N | 2.50 |
| KAF127R77DRS80K4 | 1342 | 0.55KW | 1.00r/min | 4540N.m | 431kg | 82400N | 2.90 |
| KAF127R77DRS80K4 | 1177 | 0.55KW | 1.20r/min | 3950N.m | 431kg | 82500N | 3.30 |
| KAF127R77DRS80K4 | 1025 | 0.55KW | 1.40r/min | 3460N.m | 431kg | 82600N | 3.80 |
KAF127R77DM71S4減速機類型：
K127R77DM71S4底腳安裝斜齒輪—傘齒輪減速電機
KA127BR77DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV127BR77DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH127BR77DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF127R77DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF127R77DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF127R77DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF127R77DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA127R77DM71S4空心軸斜齒輪─傘齒輪減速電機
KV127R77DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH127R77DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT127R77DM71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ127R77DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ127R77DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ127R77DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

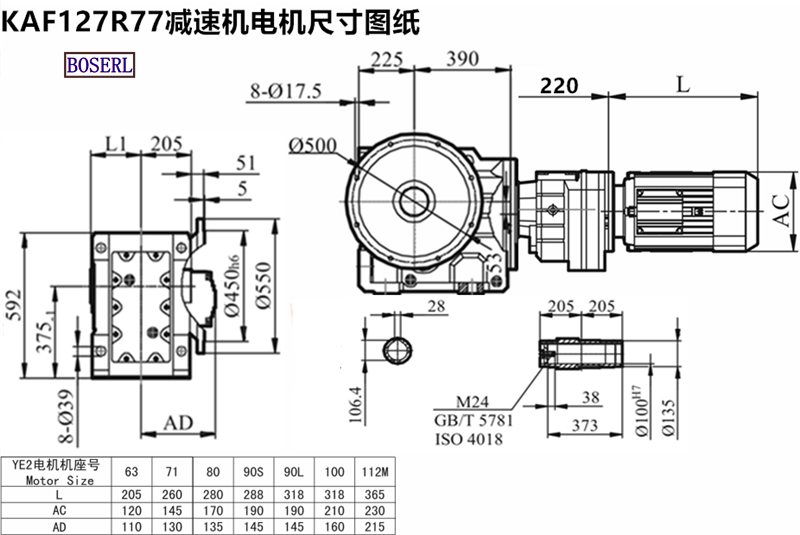

KAF127R77DM71S4減速機馬達安裝尺寸圖紙
KAF127R77DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大減速比減速機
關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.1KW用什么傘齒輪減速機 KAF127R77DM71S4 KAF127R77DRS80K4
